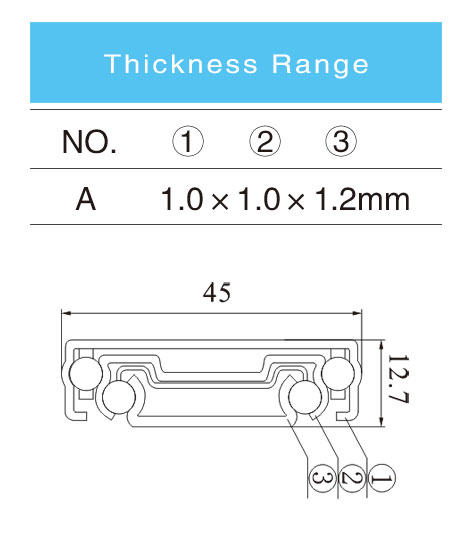

Slide width: 45mm
Size: 10"-24"
Suggested uses: office appliance、cabinet and house drawer against acid strongly、heavy equi-pment.

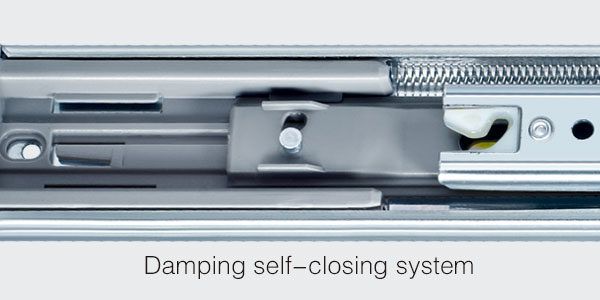

Product features: The buffer can self-return when the drawer closed, and disposed anti-off pulled buckled.The shockproof bead frame can absorb collision when the drawer is full extension; it owns shock proof and anechoic function.
Load Capacity: 45kg/450mm(18")
Installation method: side installation.12.7±0.2mm.
Plating: blue zinc, color zinc, black.
Material: cold-rolled steel.
