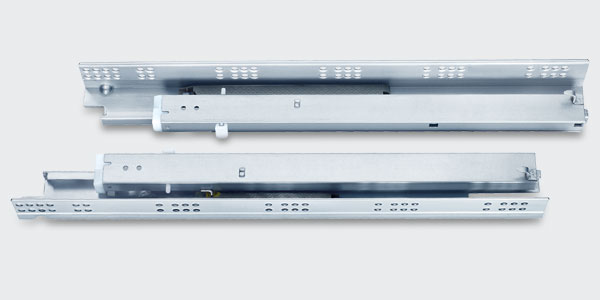

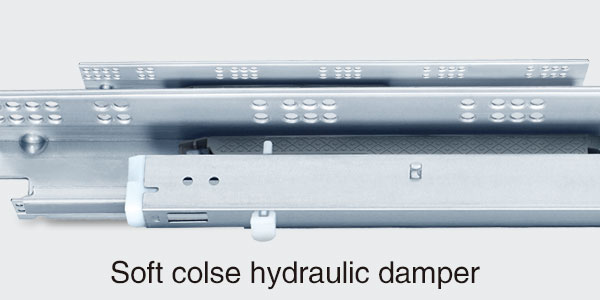

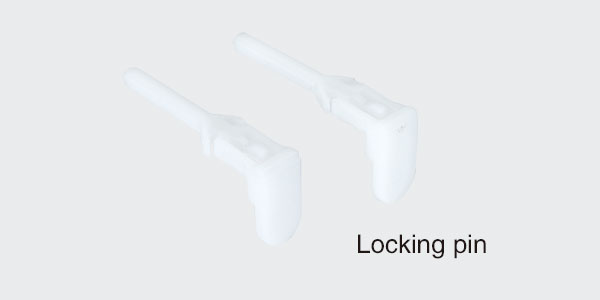

JQ-77 American-style soft closing full extension undermount slide(Max drawer slide thickness: 16mm/19mm,with locking pin and damper)

Release date：2023-02-22

Size：229mm-533mm(9"-21")
Colour：
Weight：
Reference price：

Thickness range: 1.8x1.5x1.0mm
Product length: 229mm-533mm(9"-21")
Load capacity: 34kg/18"
Life time: 50000 times

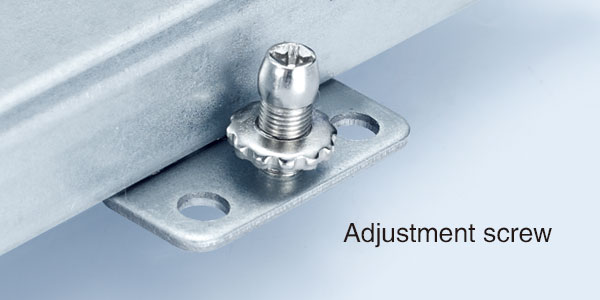

Feature: Full extension, quietly operation, tool-less height adj.(0-3mm)
