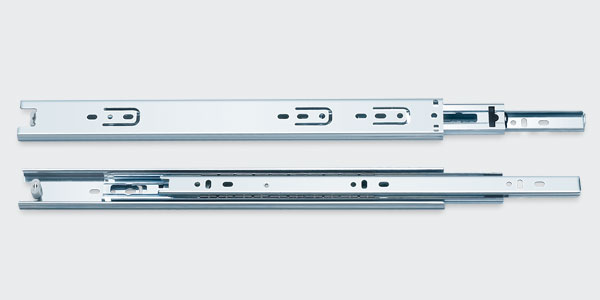

JQ-3712 3-Fold Ball Bearing Slide
Release date：2023-02-22
Size：10"-24"
Colour：blue zinc, color zinc, black.
Weight：
Reference price：

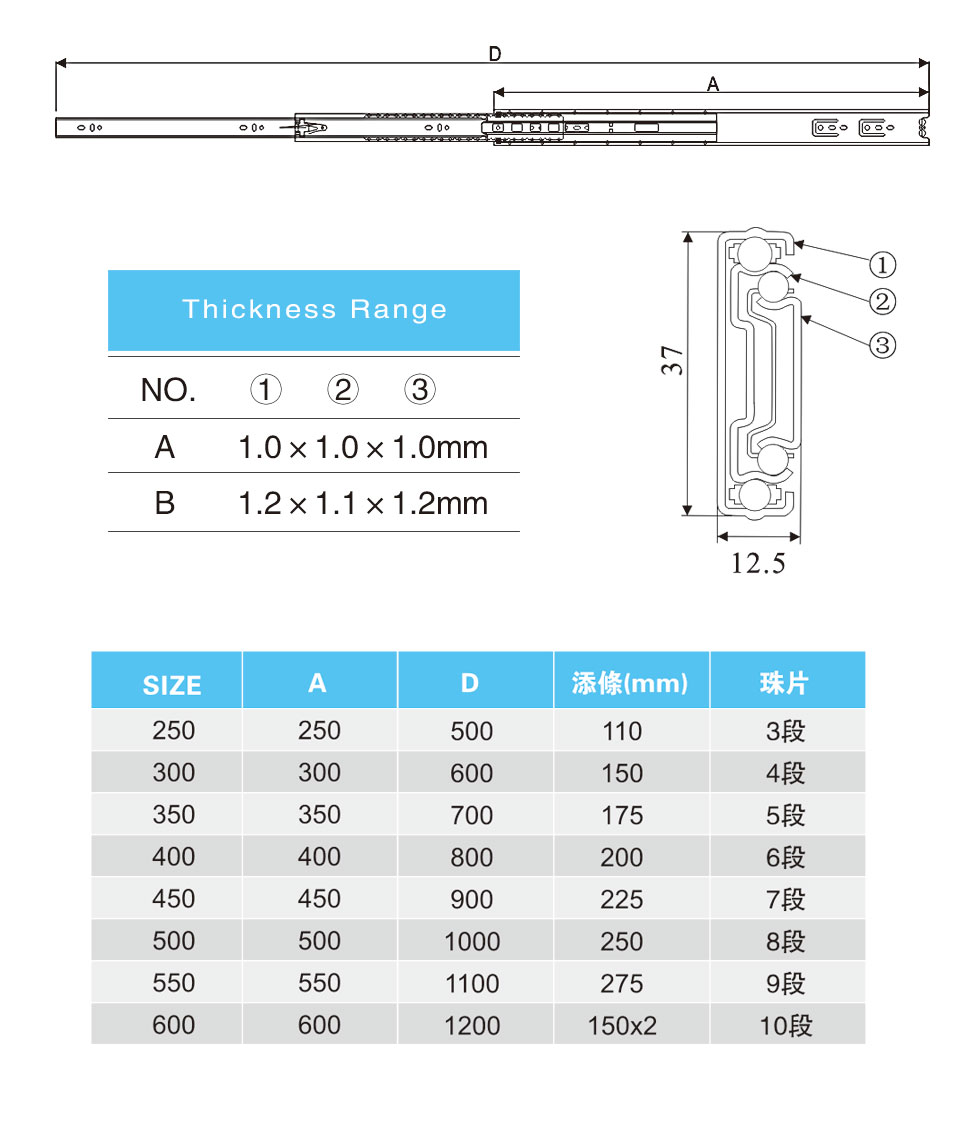

Size: 10"-24"
Suggested uses: office appliance、cabinet and house drawer.

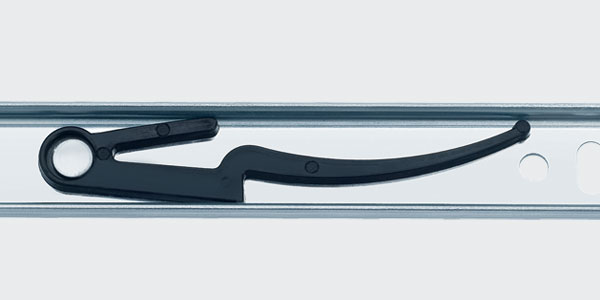

Product features: “32mm”series hole , Equipped the latest-type easy-dismantle separation latch: the installation of passive track is very simple and easy-dismantle.
Load Capacity: 40kg/450mm(18").
Installation method: side installation.12.5±0.2mm.
Plating: blue zinc, color zinc, black.
Material: cold-rolled steel.
