JQ-3508 3-Fold Ball Bearing Slide

Release date:2023-02-22

Size:10"-24"
Colour:blue zinc, color zinc, black.
Weight:
Reference price:

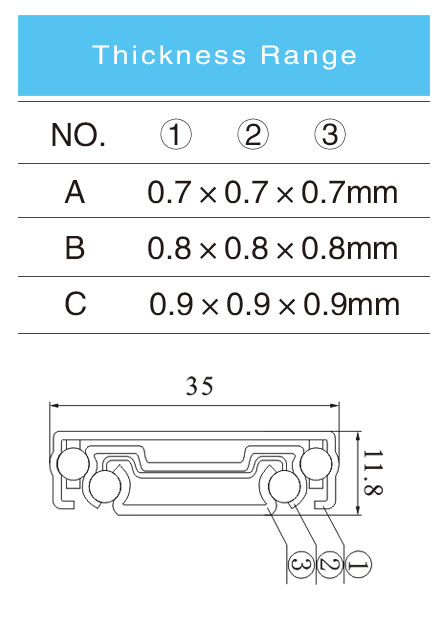

Slide width: 35mm
Size:  10"-24"
Suggested uses:  office appliance、cabinet
and house drawer.
Product features: “32mm”series hole with the separable crossbar.
Load Capacity:  30kg/450mm(18").
Installation method: side installation.11.8±0.2mm.
Plating: blue zinc, color zinc, black.

Material: cold-rolled steel.
