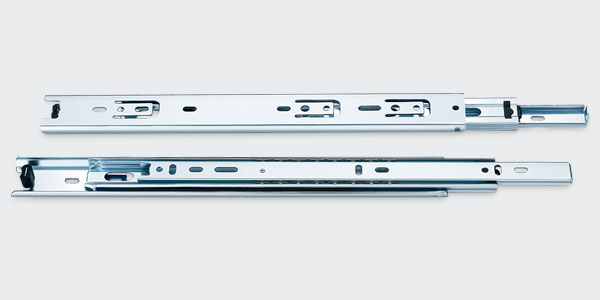

JQ-1236 Fold Ball Bearing Slide

Release date:2023-02-22

Size:10"-24"
Colour:blue zinc, color zinc, black.
Weight:
Reference price:

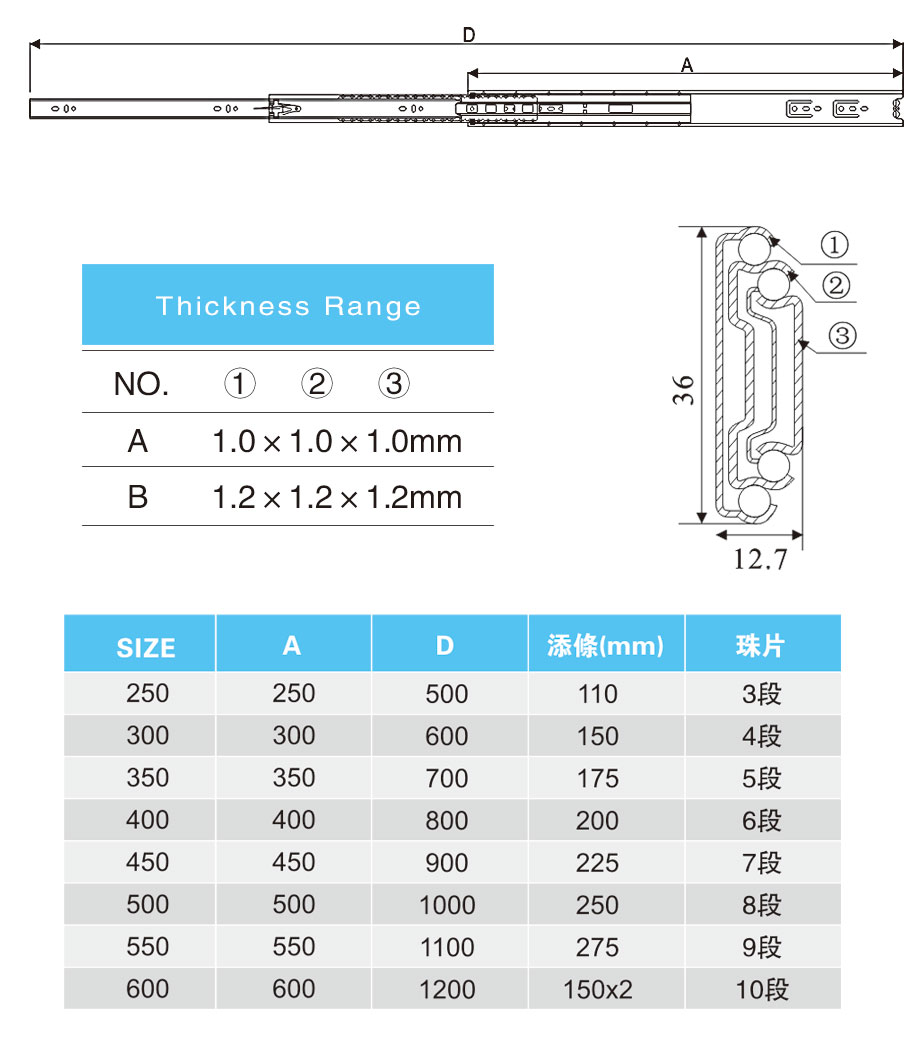

Slide width: 36mm
Size:  10"-24"
Suggested uses:  office appliance、cabinet
and house drawer.

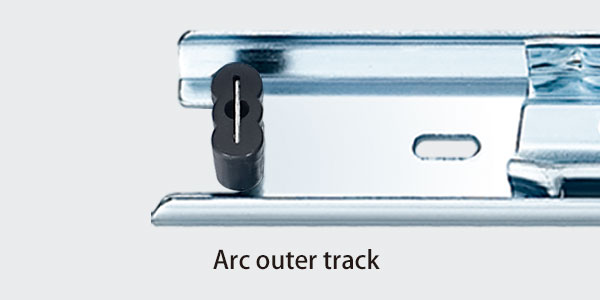

Product features: Arc outer track: the latest track design makes movement smoothly and achieves the best anechoic function.
Load Capacity:  40kg/450mm(18").
Installation method: side installation.12.7±0.2mm.
Plating: blue zinc, color zinc, black.

Material: cold-rolled steel.
